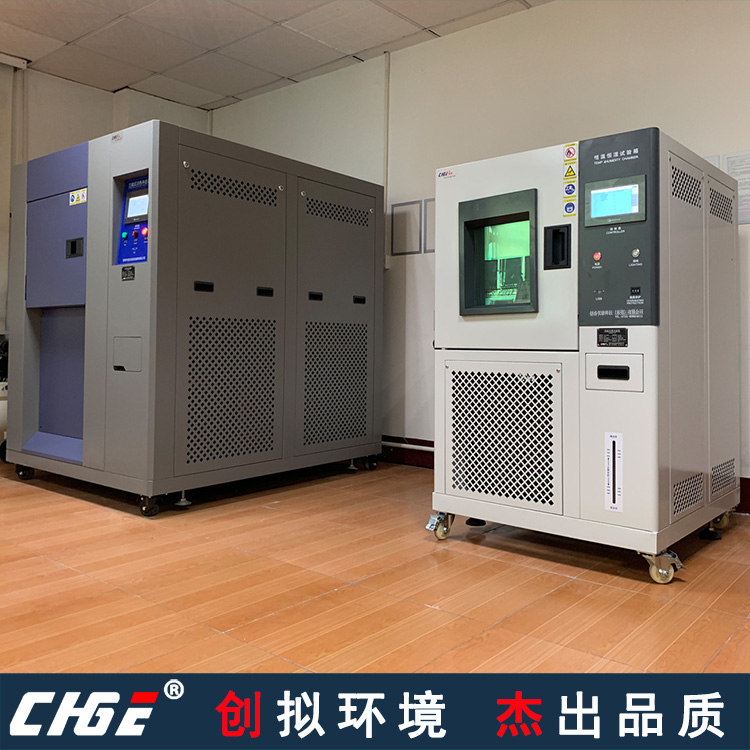

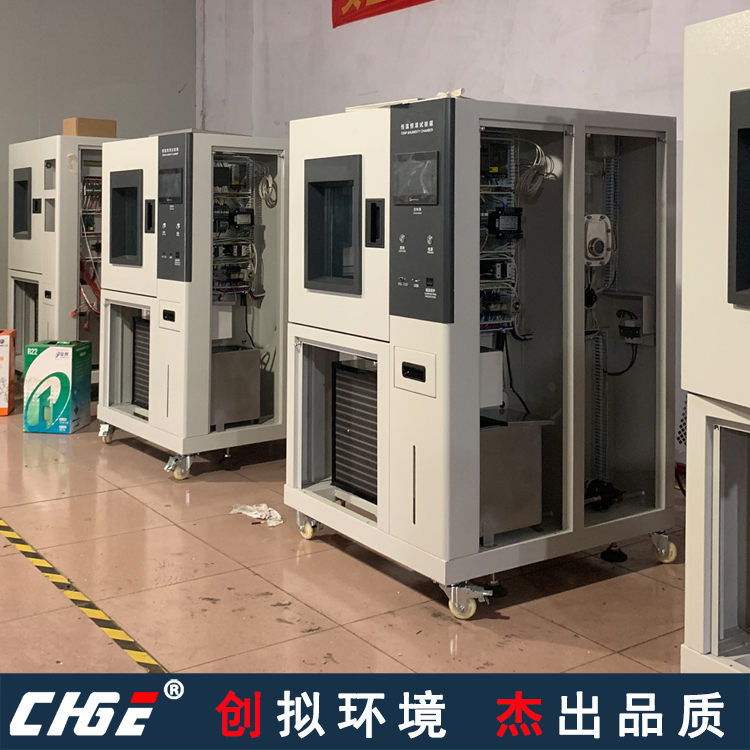

TEMPERATURE AND HUMIDITY CHAMBER
1. The main technology parameter：
model
|
THP80
|
THP100
|
THP150
|
THP225
|
THP408
|
THP800
|
THP1000
|
volume
|
80L
|
100L
|
150L
|
225L
|
408L
|
800L
|
1000L
|
|
IN SIDE
mm
|
D400
|
D400
|
D500
|
D500
|
D600
|
D800
|
D1000
|
W400
|
W500
|
W500
|
W600
|
W800
|
W1000
|
W1000
|
H500
|
H500
|
H600
|
H750
|
H850
|
H1000
|
H1000
|
|
EXT SIZE
mm
|
D780
|
D780
|
D880
|
D880
|
D980
|
D1180
|
D1380
|
W810
|
W910
|
W910
|
W1010
|
W1210
|
W1410
|
W1410
|
H1500
|
H1500
|
H1600
|
H1750
|
H1850
|
H2000
|
H2000
|
1.1 Model(Examples): THP225
1.2 Temperature range:0℃、-20℃、-30℃、-40℃、-70℃～100℃、120℃、150℃;
1.3 Humidity range：30 ~ 98%R.H；
(refer to temperature&humidity control range drawing)
1.4 Inside capacity: 2225L
1.5 Dimension of working chamber(mm): D500×W600×H750
1.6 External dimensions Probably(mm)：D880×W1010×H1750
1.7 Temperature fluctuation：±0.5℃；
1.8 Temperature accuracy：≤±2℃；
1.9 Humidity accuracy：+2-3 %RH；
1.10 Voltage：380V ；50 Hz。6KW ；14A
1.11 Weight capacity: 325 KG
2. Air Conditioning and Refrigerating system
2.1 the way of air conditioning：compel air to flow, balance to debug temperature
and humidity；
2.2 air circulation：fan；
2.3 the way of heating：open-element Nichrome heater；
2.4 Refrigerating system：Tecumseh, made in France, low back pressure；
2.5 The way of refrigerating：air cooling；
2.6 Refrigeration agent: environment protection type R404A(-40~-70&R23)
2.7 Refrigerating elements: expanding valve、electromagnetism valve、pressure controller、filtration、close valve, etc。
3． Measuring and Controlling system
3.1 Temperature measuring sensor: Pt100；
3.2 Humidity measuring sensor: Pt100；
3.3 Controlling system:Samwontech-TEMI880 ,Programmable Temperature & Humidity Controller；made in Korea.
² Controller: TEMI touch temperature&humidity controller originally imported from Korea, including double channel of temperature, humidity.
² Data display mode: graphic display, numerical display.
² Applicable program capacity: max. 120 groups (1200 segment)
² Control setting precision: temperature 0.1℃, humidity 0.1%RH, time 1S.
² Time setting: 0～99H59min
² Control mode: PID control
² Setting mode: touch type Chinese-English menu operation
² Segment time setting: 0～99H59min
² Temperature & humidity detector: PT100 platinum resistance
² One R232 communication port
3.4 The main electric elements: the most electric units are import；
3.5 Operational fashion: program&constant function。
3.6 For printing:Paperless date recorder.
4. Safety Device
4.1 Protected when the workroom’s temperature overtakes；
4.2 Protected when the blast equipment over loading；
4.3 Protected when add wet system were broke off；
4.4 Protected when compressor over loading；
4.5 Protected when compressor goes beyond pressure；
5. Test Standard
5.1 GB/T2423.1—89
5.2 GB/T2423.4—93 Db
5.3 GJB150.4—86
6. Operation Condition
6.1 Environment temperature：5 ~ 30℃；
6.2 Relative humidity：≤85% R.H
6.3 The air pressure：86 ~ 106 kpa；
6.4 Voltage：380V，50HZ；

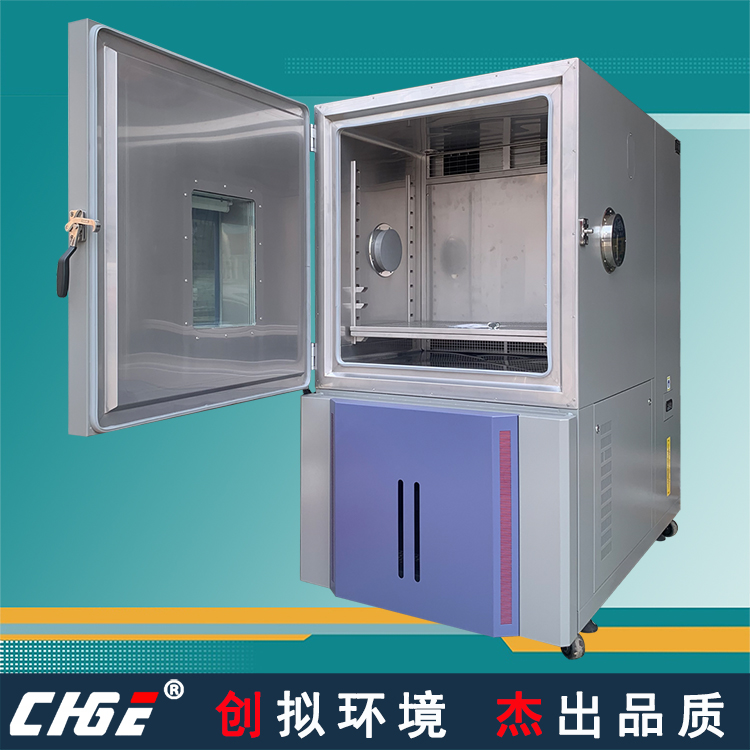

7. Chamber
7.1 External frame: A3 OR SUS 304 stainless steel；
7.2 Internal coating: SUS 304 stainless steel；
7.3 Heat preservation material: exceed thin glass cotton
7.4 Multipane inspection window：60D×265W×375H mm
7.5 Cable hole：ф50
7.6 Task lighting：12W；
7.7 Truckless under The bottom of the chamber for moving conveniently
7.8 Filter trap is easy to take apart and maintain
|
